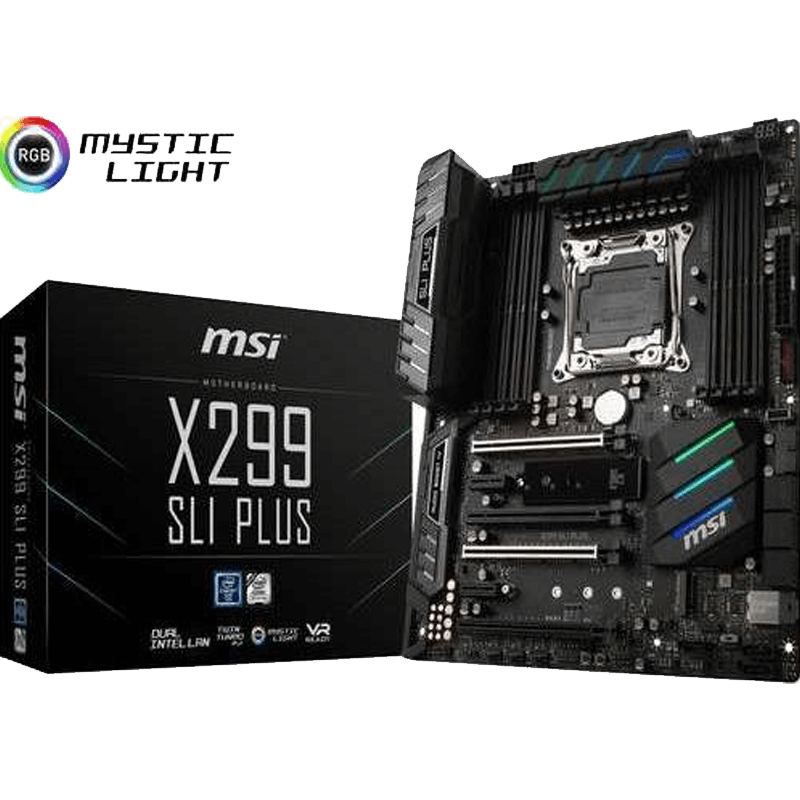

MSI Motherboard X299-SLI PLUS DDR4 Lga2066 911-7A93-006
-Part Number: 911-7A93-006
-CPU: Intel Socket LGA2066 X-Series
-Memory: 8 x DDR4 memory slots, support up to 256GB
-Graphic: 4 *PCI Express x16 slot, NVIDIA SLI, AMD CrossFire
-Expansion: 2 *PCI Express x1 slot
-Storage: 8 SATA 6GBs, 2 Turbo M.2 Port, 1 Turbo U.2
-Audio: 7.1-Channel High Definition Audio
-Lan: 2x Gigabit LAN controller
-ATX Form: ATX 30.5 cm x 24.3 cm
Daily Updated Website
Delivery all Over Lebanon
Best Price Guaranteed
| PROCESSOR | Supports Intel®Core™ X-Series Processor Family for LGA2066 Socket |
| MEMORY | Intel® Core™ X-series Processors (6-core above CPU 78XX/79XX) |
| 8 x DDR4 memory slots, support up to 256GB | |
| Quad channel memory architecture with the CPU that supports up to 4-channels DDR4 | |
| X-series processor support DDR4 4133+(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz | |
| Intel® Core™ X-series Processors (4 core CPU i7-7740X/i5-7640X) | |
| 4 x DDR4 memory slots, support up to 64GB | |
| Dual channel memory architecture with the CPU that supports up to 2-channels DDR4 | |
| X-series processor support DDR4 4500+(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/ 3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2667/2400/2133 MHz | |
| Supports Intel® Extreme Memory Profile (XMP) | |
| SLOTS | 4 x PCIe 3.0 x16 slots |
| Support x16/x16/x8 mode with the 48/44-lane CPU. | |
| Support x16/x8/x4 modes with the 28-lane CPU. | |
| Support x8/x8/x0, x8/x4/x4 modes with the 16-lane CPU. | |
| 2 x PCIe 3.0 x1 slots | |
| MULTI-GPU | Supports NVIDIA®SLI™ Technology |
| Supports AMD®CrossFire™ Technology | |
| STORAGE | Intel® X299 Chipset |
| 8 x SATA 6Gb/s ports1 | |
| 2 x M.2 slot (Key M)1 | |
| Supports up to PCIe 3.0 x4 and SATA 6Gb/s | |
| M2_1 slot supports 2242/ 2260 /2280 storage devices | |
| M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices | |
| Supports Intel® Optane™ Memory Ready for all M.2 slots2 | |
| 1 x U.2 port3 | |
| Supports PCIe 3.0 x4 NVMe storage | |
| Supports Intel® Smart Response Technology for Intel Core™ processors4 | |
| M.2 slots and SATA ports share the same bandwidth. Please refer to page 38 for U.2, M.2 & SATA combination table. | |
| Please refer to user manual for Intel® Optane™ Memory Configuration. | |
| PCI_E3 shares bandwidth with U2_1. If you install a PCI_E3 device, the U2_1 will be disabled. | |
| The functions will be supported depend on the CPU. | |
| RAID | Intel® X299 Chipset |
| Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices | |
| Supports RAID 0 and RAID1 for M.2 PCIe storage devices1 | |
| M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to user manual for Creating a M.2 PCIe SSD RAID with M.2/Optane Genie. | |
| USB | ASMedia® ASM3142 Chipset |
| 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel, 1 Type-C port available through the internal USB connector) | |
| ASMedia® ASM1074 Hub | |
| 3 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel | |
| Intel® X299 Chipset | |
| 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 Type-A port on the back panel, 4 ports available through the internal USB connectors) | |
| 8 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors) | |
| AUDIO | Realtek® ALC1220 Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1 x Intel® I219-V Gigabit LAN controller |
| 1 x Intel® I211 Gigabit LAN controller | |
| INTERNAL CONNECTORS | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 8 x SATA 6Gb/s connectors | |
| 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) | |
| 1 x USB 3.1 Gen2 Type-C port | |
| 1 x 4-pin CPU fan connector | |
| 1 x 4-pin Water Pump connector | |
| 4 x 4-pin system fan connectors | |
| 2 x Front panel connectors | |
| 1 x Front panel audio connector | |
| 1 x RGB LED connector | |
| 1 x TPM module connector | |
| 1 x Virtual RAID on CPU connector | |
| 1 x Thunderbolt add-on card connector | |
| BACK PANEL PORTS | Clear CMOS Button |
| Keyboard / Mouse | |
| USB 2.0 | |
| Dual Intel® LAN | |
| Golden Audio Connectors | |
| Flash BIOS Button | |
| USB 2.0 / Flash BIOS | |
| USB 3.1 Gen1 | |
| USB 3.1 Gen2 Type-A/C | |
| Optical S/PDIF-Out | |
| DIMENSIONS | 12 in. x 9.6 in. (30.5 cm x 24.3 cm) |
| ATX Form Factor | |
| MOUNTING | 9 mounting holes |
