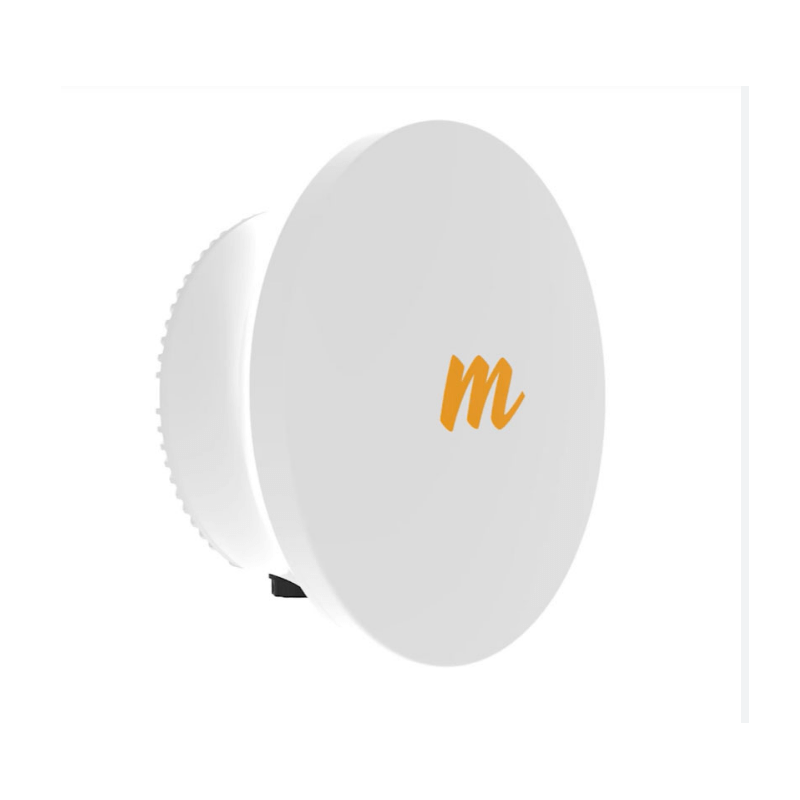

Mimosa B24 2 Backhaul 1.5Gbps 24Ghz
The Mimosa B24 breaks the existing barriers of price, size, performance and power efficiency in the less crowded, unlicensed 24 GHz band.
Daily Updated Website
Delivery all Over Lebanon
Best Price Guaranteed
| Performance | |
| Max Throughput: | Up to 1.5 Gbps IP aggregate UL/DL |
| Max PHY rate: | 1.7 Gbps PHY |
| <1 ms | |
| Supported MAC: | TDMA, TDMA-FD |
| MIMO and Modulation: | |
| Bandwidth: | Single or dual channel; 20/40/80 MHz channel width |
| Channel Spacing: | Single channel allows 5 MHz channel spacing; Dual channel allows separate, no-overlapping 5 MHz spacing increments |
| 24.00 - 24.25 GHz worldwide support; Operating range is 24.07 - 24.23 GHz | |
| EIRP: | ~20 dBm (CE) |
| ~33 dBm (FCC/IC) | |
| ~37 dBm (other regions) | |
| -20 dBm | |
| 1 dB | |
| Sensitivity (MCS0): | -84 dBm @ 80 MHz |
| -87 dBm @ 40 MHz | |
| -90 dBm @ 20 MHz | |
| Gain: | |
| Beamwidth (3dB): | 3.0º |
| Elevation Adjust: | +-2.5º azimuth mechanical adjust+-15º elevation mechanical adjust |
| Front to Back Ratio: | >30 dB |
| Cross-Polar Isolation: | |
| Polarization: | Dual-linear (slant 45º) |
| 19.5 W | |
| System Power Method: | 48V DC 802.3at compliant |
| System Lightning & ESD Protection: | 6 kV |
| PoE Power Supply: | Passive POE compliant, 50V 1.2A power over ethernet (included) |
| Physical | |
| Dimensions: | Height: 260 mm (10.24”) |
| Width: 260 mm (10.24”) | |
| Depth: 134 mm (5.3”) without bracket; 252 mm (9.9”) with bracket | |
| Weight: | 2.76 kg (6 lbs) including mount |
| Enclosure Characteristics: | Outdoor UV stabilized plastic; |
| Wind Survivability: | 200 km/h (125 mph) |
| Wind Loading: | 12.52 kg @ 160 km/h |
| (27.61 lbs @ 100 mph) | |
| Precision lightweight aiming pole mount with +-15º elevation and +-2.5º horizontal adjustment screws | |
| Network Interfaces: | Gigabit ethernet |
| (RJ45) and gigabit fiber (SFP cage); Operation modes: Hot standby | |
|
Environmental
|
|
| Outdoor Ingress Protection Rating: | IP67 |
| -40°C to +55°C (-40°F to 131°F) | |
| Operating Humidity: | 5 to 100% condensing |
| Operating Altitude: | 4,420 m (14,500’) max |
| Shock & Vibration: | ETS 300-019-2-4 class 4M5 |
| Regulatory and Compliance | |
| Approvals: | FCC 15.249 |
| IC RSS210 | |
| ETSI EN 300-440 V2.1.1 | |
| CE | |
| RoHS Compliance: | Yes; WEEE |
| Safety: | EC/EN/ 60950-1 |
| Features | |
| Gigabit Ethernet: | 10/100/1000-BASE-T |
| Fiber Capable: | Supports SFP interface for fiber operation |
| Ethernet Redundancy: | Dual Link failover; Does not support simultaneous ethernet + fiber operation |
| Dual Protocol Operation: | 2 dual-stream radios operating on non-contiguous frequencies allow for traditional FDD-like performance or TDMA automatic load balancing of traffic across 4 total MIMO streams with individual stream encoding up to 256 QAM |
| Management Services: | Mimosa cloud monitoring and management |
| SNMPv2 & Syslog monitoring HTTPS | |
| HTML5 based web UI | |
| 2.4 GHz 802.11b/g/n radio for local management access | |
| Smart Antenna Alignment: | Hands-free, dedicated 2.4 GHz WiFi management radio |
| Smart Spectrum Management: | Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of bandwidth, power, and modulation |
| Security: | 128-bit AES PSK with hardware acceleration |
| QoS: | Supports 4 pre-configured QoS levels |
| GPS Location: | GNSS-1 (GPS + GLONASS) |
| Collocation Synchronization: | 1PPS GPS TX/RX synchronization for collocated co-channel radios; Adjustable up/downstream bandwidth ratio |
