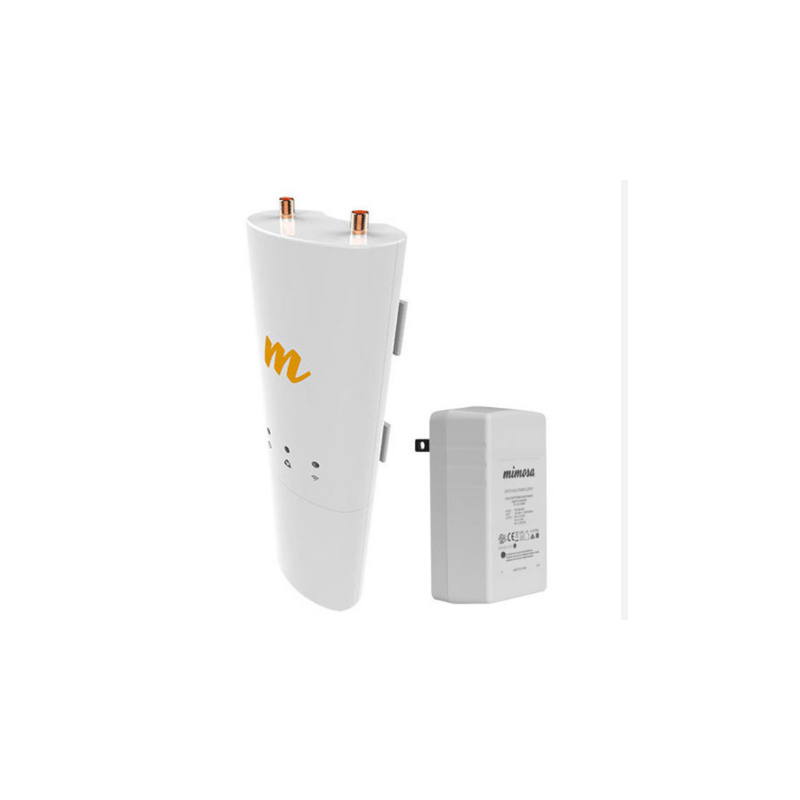

Mimosa C5C 100-00018-01 Point-to-Point Backhaul & Point-to-Multipoint Client Radio 4.9–6.4 GHz (PTP/PTMP*)
C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.
Daily Updated Website
Delivery all Over Lebanon
Best Price Guaranteed
| Performance | |
| Max Throughput | PTP/PTMP: 700 Mbps IP (866 Mbps PHY) |
| Wireless Protocols | WiFi Interop |
| Mimosa SRS | |
| Modes | PTMP Client |
| PTP Backhaul | |
| Radio | |
| MIMO & Modulation | 2x2:2 MIMO OFDM up to 256 QAM |
| Bandwidth* | 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; |
| Tunable to standard WiFi channels for WiFi Interop | |
| Frequency Range | PTMP: 4900-6400 MHz*** |
| PTP: 4900-6400 MHz | |
| Restricted by country of operation | |
| *new* US/FCC 5600-5650 MHz support | |
| FCC DFS (U-NII-2a, U-NII-2c) availability pending certification | |
| Max Output Power | 27 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz |
| -90 dBm @ 40 MHz | |
| -93 dBm @ 20 MHz | |
| Power | |
| Max Power Consumption | 9.2 W |
| System Power Method | Passive PoE (24-56 VDC) |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included) |
| Physical | |
| Dimensions | Depth 44 mm (1.73") |
| Width 65 mm (2.56") | |
| Height 188.4 mm (7.42") | |
| Weight | 295 grams (10.4 oz) |
| Mounting | Single pole strap |
| Connector Type | RP-SMA (x2) |
|
Environmental
|
|
| Outdoor Ingress Protection Rating | IP55 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14501') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Management Services | Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) |
| Dynamic auto-optimization of channel and bandwidth use | |
| Security | WPA2 + Mimosa 802.1x Client** |
| QoS | Supports 4 pre-configured QoS levels |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210, |
| CE, ETSI 301 893/302 502 | |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
